Trailer Iru Genset

O wa nibi : Ile> Ọja > Ṣeto monomono (Iru) > Trailer Iru Genset

awọn ọja

30
Iru Genset Trailer Yuchai Engine pẹlu Iye Itọju Itọju Kekere.

Iru Genset Trailer Yuchai Engine pẹlu Iye Itọju Itọju Kekere.

Adopt the cylinder head
High-quality alloy cast
Ti o dara versatility ti awọn ẹya ara
Ṣe atilẹyin ibẹrẹ agbara meji

lorun
  • Standard
  • Performance
Standard
ISO 8528: Ṣeto ẹrọ ina mọnamọna AC ti a ṣe adaṣe nipasẹ isọdọtun ẹrọ ẹrọ ijona inu
IEC 60034-1: Awọn ibeere imọ-ẹrọ ipilẹ fun yiyi awọn ẹrọ itanna
YD/T 502: Ibaraẹnisọrọ monomono Diesel ibaraẹnisọrọ
GB/T 20136-2006: Ọna idanwo gbogbogbo fun ibudo agbara ijona engine inu
Ṣe atilẹyin ibẹrẹ agbara meji
Gbogbo awọn ọna ẹrọ engine ti kọja apẹrẹ ati awọn idanwo ile-iṣẹ.

anfani
Gba awọn silinda ori ese omi iṣan oniru lati din awọn lilẹ dada ati ki o mu awọn dede ti awọn lilẹ.
Pisitini ti wa ni tutu nipasẹ ọna epo itutu agba ti inu, eyiti o dinku iwọn otutu ti piston daradara ati pe o ni igbesi aye iṣẹ pipẹ.
Pade awọn ibeere ti ipele iṣẹ G3 ti ṣeto monomono.
Didara alloy simẹnti iron silinda Àkọsílẹ ati ori silinda, igbẹkẹle giga.
Iyipada ti o dara ti awọn ẹya, iwọn giga ti serialization, ọkan-silinda ọkan-ori be, kekere iye owo itọju okeerẹ.
Ṣe atilẹyin ibẹrẹ agbara meji
Gbogbo awọn ọna ẹrọ engine ti kọja apẹrẹ ati awọn idanwo ile-iṣẹ.
iṣẹ
ParametaUnitPerformance
Igbohunsafẹfẹ ju%≤3
Iwọn ipo igbohunsafẹfẹ iduroṣinṣin%≤0.5
Eto ipo igbohunsafẹfẹ ti o ju silẹ%≥3.5
Eto ipo igbohunsafẹfẹ ibatan ti o ga soke%≥2.5
Iyapa igbohunsafẹfẹ tionkojalo100% agbara idinku lojiji%≤ + 10
Agbara lojiji≤-7
Akoko imularada nigbakugbas≤3
Ojulumo igbohunsafẹfẹ iye iye%2
Iyapa foliteji iduroṣinṣin%≤ ± 1
Ailokun foliteji%1
Iyapa foliteji tionkojalo100% agbara idinku lojiji%≤ + 20
Agbara lojiji≤-15
Akoko imularada folitejis≤4
Voltage awose%0.3
Ibiti foliteji eto ibiti%≤ ± 5
Oṣuwọn eto foliteji ti iyipada%/s0.2~1
Tẹlifoonu harmonic ifosiweweTHF%<2
Awọn okunfa ipa foonuTIF-<50
Ṣiṣẹ

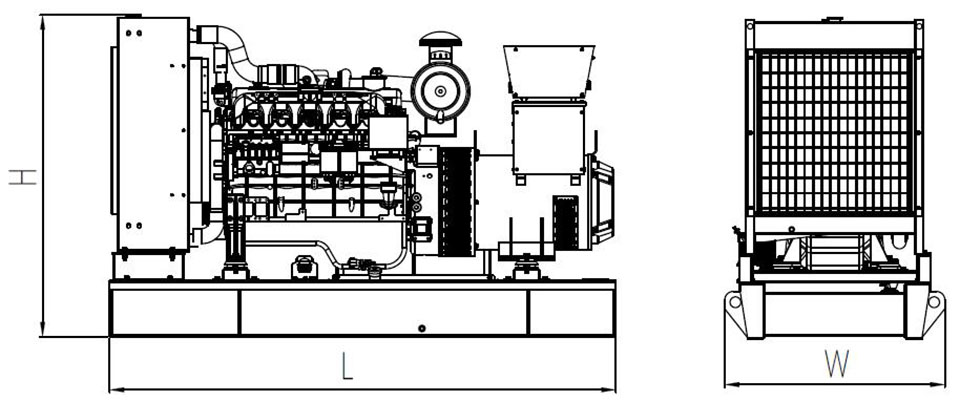

3 副本

IDAGBASOKE ỌRỌ

Agbara akọkọ (PRP) jẹ agbara ti o pọ julọ ti ẹyọ le ṣiṣẹ ni igbagbogbo pẹlu fifuye oniyipada labẹ agbegbe boṣewa (titẹ oju aye, ọriniinitutu ibatan, iwọn otutu ibaramu) awọn ipo, ati gba iṣẹ ṣiṣe apọju 10% fun wakati 1 ni gbogbo wakati 12.

Giga: ≤1000m (nigbati> 1000m, o nilo atunse agbara)
Iwọn otutu ibaramu: 40 ° C (nigbati> 40 ° C, o nilo atunse agbara)
Ọriniinitutu ibatan: ≤60%
Nigbati awọn ipo iṣiṣẹ lori aaye ti eto ti n pese Diesel ko ba awọn ipo ti o wa loke, agbara iṣelọpọ ti ṣeto monomono gbọdọ wa ni atunse, ati nikẹhin atunse olùsọdipúpọ, jọwọ kan si wa.
Awoṣe GensetAgbara Alakoko (kW)Agbara Imurasilẹ (kW)Agbara agbarawon won FolitejiigbohunsafẹfẹIwọn (L × W × H) (mm)Àdánù (kg)Awoṣe ẸrọNọmba ti Awọn iyipoBọ × Ọpọlọ (mm)Sita (L)Idana Agbara (g/kW)iyaraitutu SystemỌna Bibẹrẹ
Yuchai Genset ara ipalọlọ(400V)
ATYS-Y16F16 18 0.8400V50HZ2500L × 980W × 1580H10284D24G6487 * 1032.45 1500Omi irun omiBibẹrẹ Itanna
ATYS-Y20F20 22 0.8400V50HZ2500L × 980W × 1580H1068 4D24G7487 * 1032.45 1500Omi irun omiBibẹrẹ Itanna
ATYS-Y24F24 26 0.8400V50HZ2500L × 980W × 1580H 11254D24TG2487 * 1032.45 1500Omi irun omiBibẹrẹ Itanna
ATYS-Y30F30 33 0.8400V50HZ2500L × 1020W × 1580H 1210 4D24TG0487 * 1032.45 1500Omi irun omiBibẹrẹ Itanna
ATYS-Y45F45 50 0.8400V50HZ 2700L × 1020W × 1580H 1420YC4D80-D344105 * 1154.21 1500Omi irun omiBibẹrẹ Itanna
ATYS-Y50F50 55 0.8400V50HZ2700L × 1020W × 1580H  1450YC4D90-D344108 * 1154.21 1500Omi irun omiBibẹrẹ Itanna
ATYS-Y60F60 66 0.8400V50HZ2700L × 1020W × 1580H 1495 YC4D105-D344108 * 1154.21 1500Omi irun omiBibẹrẹ Itanna
ATYS-Y70F70 77 0.8400V50HZ2850L × 1120W × 1650H  1545 YC4D120-D314108 * 1154.21 1500Omi irun omiBibẹrẹ Itanna
ATYS-Y80F80 88 0.8400V50HZ 2850L × 1120W × 1650H 1595YC4D140-D314108 * 1154.21 1500Omi irun omiBibẹrẹ Itanna
ATYS-Y90F90 100 0.8400V50HZ3000L × 1220W × 1720H  1750YC4A155-D304108 * 1324.84 1500Omi irun omiBibẹrẹ Itanna
ATYS-Y90FG90 100 0.8400V50HZ2850L × 1120W × 1650H  1650 YC4D155-D314103 * 1134.21 1500Omi irun omiBibẹrẹ Itanna
ATYS-Y110F110 120 0.8400V50HZ3000L × 1220W × 1720H  1880 YC4A190-D304108 * 1324.84 1500Omi irun omiBibẹrẹ Itanna
ATYS-Y120F120 132 0.8400V50HZ3550L × 1220W × 1880H 2454YC6A205-D306108 * 1327.26 1500Omi irun omiBibẹrẹ Itanna
ATYS-Y140F140 154 0.8400V50HZ3550L × 1220W × 1880H   2518 YC6A230-D306108 * 1327.25 1500Omi irun omiBibẹrẹ Itanna
ATYS-Y144F144 160 0.8400V50HZ3550L × 1220W × 2880H  2620 YC6A245-D306108 * 1327.25 1500Omi irun omiBibẹrẹ Itanna
ATYS-Y160F160 176 0.8400V50HZ3550L × 1202W × 1850H 2780 YC6A275-D306108 * 1327.25 1500Omi irun omiBibẹrẹ Itanna
ATYS-Y200F200 220 0.8400V50HZ4060L × 1520W × 2183H  3650 YC6MK350-D306123 * 14510.34 1500Omi irun omiBibẹrẹ Itanna
ATYS-Y250F250 275 0.8400V50HZ4060L × 1520W × 2183H  3700 YC6MK420-D306123 * 14510.34 1500Omi irun omiBibẹrẹ Itanna
ATYS-Y280F280 308 0.8400V50HZ4060L × 1520W × 2183H  3760 YC6MK450-D306123 * 14510.34 1500Omi irun omiBibẹrẹ Itanna
ATYS-Y300F300 330 0.8400V50HZ 4400L × 1620W × 2322H   4650 YC6K500-D30/316129 * 15512.16 1500Omi irun omiBibẹrẹ Itanna
ATYS-Y320F320 350 0.8400V50HZ4400L × 1620W × 2322H 4720YC6K520-D306129 * 15512.16 1500Omi irun omiBibẹrẹ Itanna
ATYS-Y360F360 400 0.8400V50HZ 4400L × 1620W × 2322H  4890YC6K600-D306129 * 16512.94 1500Omi irun omiBibẹrẹ Itanna
ATYS-Y400F400 440 0.8400V50HZ4600L × 1720W × 2502H5830YC6T660-D316145 * 16516.35 1500Omi irun omiBibẹrẹ Itanna
ATYS-Y450F450 500 0.8400V50HZ4600L × 1720W × 2502H 6025 YC6TD780-D316152 * 18019.60 1500Omi irun omiBibẹrẹ Itanna
ATYS-Y500F500 550 0.8400V50HZ4950L × 1920W × 2560H 6680 YC6TD840-D316152 * 18019.60 1500Omi irun omiBibẹrẹ Itanna
ATYS-Y550F550 600 0.8400V50HZ4950L × 1920W × 2560H   6850YC6TD900-D316152 * 18019.60 1500Omi irun omiBibẹrẹ Itanna
